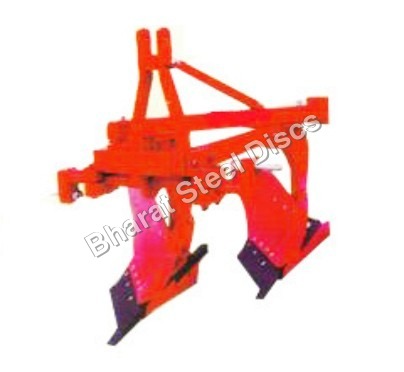

Mounted MB Plough

Mounted MB Plough
Mounted MB Plough
Send Inquiry
Product Code : 012
Brand Name : m.b plough
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece
  • Price
  • 17000 INR/Unit
Product Specifications
  • Product Type
  • Mounted MB
  • Weight (kg)
  • 30-120 Kilograms (kg)
  • Drive Type
  • Gear Drive
  • Start Method
  • Hand Crank
  • Material
  • Metal
Product Description

Leveraging on our ethical business practices & immense knowledge in this domain, we are professionally engaged in manufacturing and exporting Mounted MB Plough. These ploughs are engineered at our well-equipped manufacturing unit using cutting-edge technology. Suitable for use in tough ploughing job, these ploughs are widely used for soil breaking, soil raising and soil turning applications. Available in different specifications, Mounted MB Plough can be used in stony & rooted soil.


  • Offered mould board plough can easily handle the toughest job
  • Highly appreciated for its outstanding penetration performance
  • Bar bottom point of plough can be reversed, extended and reused at the maximum possible length
  • This MB plough has longer shelf life and high efficiency
  • Comprised of bottoms that have appreciable wear resistant property

Specifications :

 65x65x8mm Box & 65x65x8mmBox&
50 mm round 50 mm round
Tyne 32 mm Profile Cut single Piece
 32 mm Profile Cut single Piece
Length (L) 1300 mm   1880 mm
Width (N) 738 mm   738 mm
Height 1066 mm   1066 mm
Blade 10 mm   10 mm
Mould Board 8 mm   8 mm
Shovel 40x25 mm Bar (EN-42 Forged)   40x25 mm Bar (EN-42 Forged)
3 Point Linkage 65x16 mm flat & 31 mm Square   65x16 mm flat & 31 mm Square
Clamp 125x50 mm   125x50 mm
Width Of Cut (B) 610 mm (max)   910 mm (max)
Depth Of Cut 350 mm (max)   350 mm (max)
Weigth 220 Kg. (approx)   350 Kg. (approx)
Power Required (HP) 30-40   55-60
Trade Information
  • Payment Terms
  • Cash in Advance (CID), Cash Advance (CA)
  • Supply Ability
  • 15 Piece Per Week
  • Delivery Time
  • 2 Days
  • Main Domestic Market
  • All India
